marine vertical double-stage double-outlet centrifugal pump manufacturer from China Chongqing Mingchong Ship Building Equipment Co.,ltd

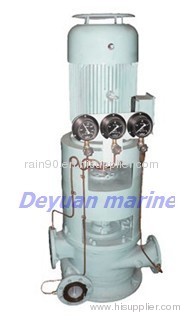

marine vertical double-stage double-outlet centrifugal pump

Price:	10.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Packing: wooden case

Production Capacity: 60set/month

Delivery Date: 7days

1.centrifugal pump.2.suitable for fluid drive system.3.competitive price.4.advanced techniques

marine vertical double-stage double-outlet centrifugal pump

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

CLN Series marine vertical double-stage double-outlet centrifugal pump is used to deliver fresh water and seawater,widely used for cooling,fire control,chamber loading and other general water drainage.It can be used as the alkali liquid pump and distilling pump in seawater desalination.It can also be used for industrial and urban water supply.The temperature of delivery medium shall not be over 80℃.

Generally,it can be used under the follwing conditions:

Using stage	First-stage outlet pipe	Second-stage outlet pipe	functions
1	open	closed	Ballast pump and bilge pump
2	closed	open	Deck flushing pump and fire pump

Type	(50HZ,3phase,380v)main technical parameter
	Capacity (m3/h)	Head (m)	Speed (R/min)	NPSHR (m)
	Capacity (m3/h)	Head (m)	Speed (R/min)	NPSHR (m)	CLN80-340/2A	51/51	29.5/65	1480	2.8
CLN80-340-2C	116/58	24/61	1480	3.4
CLN80-340-2D	112/54	15/51.5	1480	4.3
CLN80-340-2E	141/62	25.5/59	1480	4.2
CLN100-380/2A	95/91	36.5/86	1480	4.1
CLN100-380/2C	149/95	27.5/77	1480	3.7
CLN100-380/2D	141/95	16.5/60.5	1480	3.6
CLN100-380/2E	199/99	23.5/69.5	1480	4.2
CLN125-380/2A	124/120	33.5/77	1480	4.0
CLN125-380/2C	215/120	23.5/65	1480	4.2
CLN125-380/2D	199/108	17/60.5	1480	4.2
CLN125-380/2E	257/124	24/68.5	1480	3.5
CLN150-380/2A	199/182	33/79	1480	5.1
CLN150-380/2C	248/174	22/71.5	1480	4.9
CLN150-380/2D	265/166	14.5/62	1480	4.2
CLN150-380/2E	389/182	22/70	1480	4.6

Type	(60HZ,3phase,440v)main technical parameter				Motor power kw
Type	Capacity (m3/h)	Head (m)	Speed (R/min)	NPSHR (m)	Motor power kw
CLN80-340/2A	60/62	43/95	1780	3.2	37
CLN80-340-2C	140/70	35/89	1780	4.0	37
CLN80-340-2D	135/65	22/75	1780	5.3	30
CLN80-340-2E	170/75	37/86	1780	5.2	37
CLN100-380/2A	115/110	53/125	1780	5.1	75
CLN100-380/2C	180/115	40/112	1780	4.5	75
CLN100-380/2D	170/115	24/88	1780	4.4	55
CLN100-380/2E	240/120	34/101	1780	5.2	75
CLN125-380/2A	150/145	49/112	1780	5	90
CLN125-380/2C	260/145	34/95	1780	5.2	75
CLN125-380/2D	240/130	25/88	1780	5.2	75
CLN125-380/2E	310/150	35/100	1780	4.2	90
CLN150-380/2A	240/220	48/115	1780	6.6	132
CLN150-380/2C	420/210	32/104	1780	6.2	132
CLN150-380/2D	320/200	21/90	1780	6	90
CLN150-380/2E	470/220	32/102	1780	5.8	110
